공부정리/Computer Vision

[Vision] timm 으로 이미지 사전학습 모델 (ImageNet) 불러오기 / Python 파이썬

sillon 2023. 2. 14. 21:48
728x90
반응형


일반적으로 image classification 분야에서 새로운 model을 설계하는 것은 매우 어려운일이다.

그 이유는,
1) 단순하게 layer를 추가 구성해서 붙이는 과정으로는 model을 효율적으로 업그레이드 하는 것은 불가능함

2) 일반적으로 이미지 입력 크기의 경우 224-by-224 사이즈를 쓰게되는데 충분한 하드웨어 리소스 없이는 batch size를 백단위로 구성하는 것도 힘들며, batch size를 줄여서 학습을 하게 되면 모델 하나 학습하는데 몇일씩 걸리기 때문에 연구 개발 과정이 너무 길어지게 됨

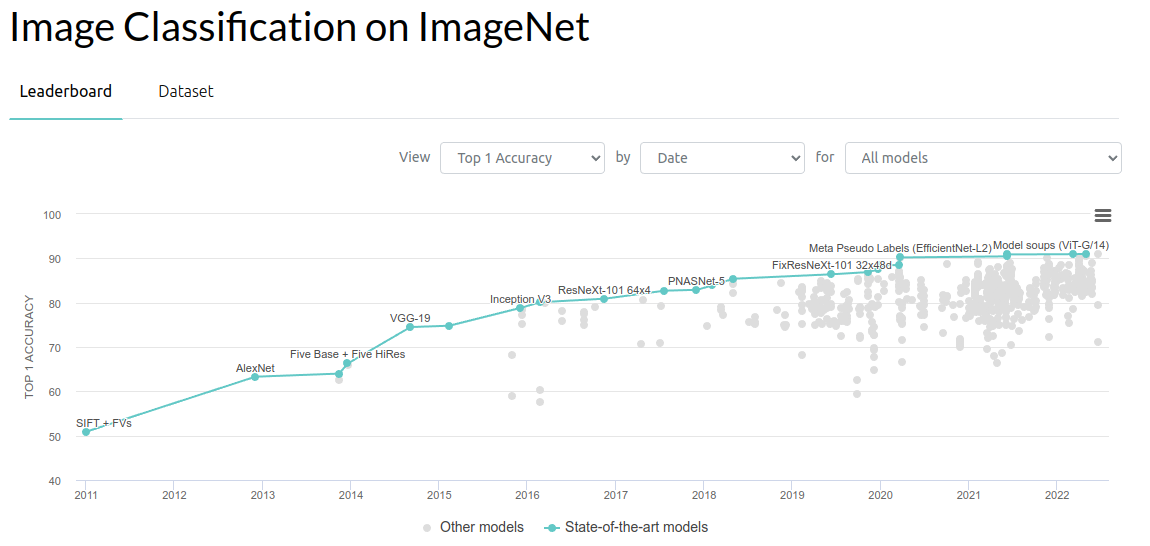

따라서, image classification 분야에서는 주로 이미 개발된 뛰어난 model들을 가져와서 사용하게 된다.


(출처: https://paperswithcode.com/sota/image-classification-on-imagenet)

이렇게 위와 같이 뛰어난 사전 학습된 model들을 pytorch에서 활용하기 위한 timm 모듈을 추천한다. (https://rwightman.github.io/pytorch-image-models/)

활용방법은 간단하다.



1) 설치

pip install timm

2) 활용 (ex: convnext_tiny)

import timm
net = timm.models.convnext_tiny(pretrained=True)



2-1) 클래스로 활용

from torch import nn
import timm


class LandmarkModel(nn.Module):
    def __init__(self, **kwargs):
        super(LandmarkModel, self).__init__()
        backbone = kwargs["backbone"] # 백본 모델명이 입력되는 코드
        num_classes = kwargs["num_classes"] # 분류하려는 이미지의 클래스 수
        self.model = timm.create_model(
            model_name=backbone, pretrained=True, num_classes=num_classes
        ) # 백본 모델 생성

    def forward(self, inp):
        x = self.model.forward(inp)
        return x



일부 모델들은 pretrained=True를 사용할때 오류가 나기때문에 모든 모델을 활용하는 것은 불가능하지만

torchivision에서 제공하는 pretrained model보다 (https://pytorch.org/vision/stable/models.html)

timm이 더 많은 사전학습된 모델들을 제공하기 때문에 timm 모듈 사용을 추천한다.



(출처:huggingface)



아래는 사전학습된 사용가능한 모델들을 요약해놓았다.



Self-trained Weights

The table below includes ImageNet-1k validation results of model weights that I’ve trained myself. It is not updated as frequently as the csv results outputs linked above.



Model Acc@1(Err) Acc@5 (Err)  Param # (M) Interpolation Image Size
efficientnet_b3a 82.242 (17.758) 96.114 (3.886) 12.23 bicubic 320 (1.0 crop)
efficientnet_b3 82.076 (17.924) 96.020 (3.980) 12.23 bicubic 300
regnet_32 82.002 (17.998) 95.906 (4.094) 19.44 bicubic 224
skresnext50d_32x4d 81.278 (18.722) 95.366 (4.634) 27.5 bicubic 288 (1.0 crop)
seresnext50d_32x4d 81.266 (18.734) 95.620 (4.380) 27.6 bicubic 224
efficientnet_b2a 80.608 (19.392) 95.310 (4.690) 9.11 bicubic 288 (1.0 crop)
resnet50d 80.530 (19.470) 95.160 (4.840) 25.6 bicubic 224
mixnet_xl 80.478 (19.522) 94.932 (5.068) 11.90 bicubic 224
efficientnet_b2 80.402 (19.598) 95.076 (4.924) 9.11 bicubic 260
seresnet50 80.274 (19.726) 95.070 (4.930) 28.1 bicubic 224
skresnext50d_32x4d 80.156 (19.844) 94.642 (5.358) 27.5 bicubic 224
cspdarknet53 80.058 (19.942) 95.084 (4.916) 27.6 bicubic 256
cspresnext50 80.040 (19.960) 94.944 (5.056) 20.6 bicubic 224
resnext50_32x4d 79.762 (20.238) 94.600 (5.400) 25 bicubic 224
resnext50d_32x4d 79.674 (20.326) 94.868 (5.132) 25.1 bicubic 224
cspresnet50 79.574 (20.426) 94.712 (5.288) 21.6 bicubic 256
ese_vovnet39b 79.320 (20.680) 94.710 (5.290) 24.6 bicubic 224
resnetblur50 79.290 (20.710) 94.632 (5.368) 25.6 bicubic 224
dpn68b 79.216 (20.784) 94.414 (5.586) 12.6 bicubic 224
resnet50 79.038 (20.962) 94.390 (5.610) 25.6 bicubic 224
mixnet_l 78.976 (21.024 94.184 (5.816) 7.33 bicubic 224
efficientnet_b1 78.692 (21.308) 94.086 (5.914) 7.79 bicubic 240
efficientnet_es 78.066 (21.934) 93.926 (6.074) 5.44 bicubic 224
seresnext26t_32x4d 77.998 (22.002) 93.708 (6.292) 16.8 bicubic 224
seresnext26tn_32x4d 77.986 (22.014) 93.746 (6.254) 16.8 bicubic 224
efficientnet_b0 77.698 (22.302) 93.532 (6.468) 5.29 bicubic 224
seresnext26d_32x4d 77.602 (22.398) 93.608 (6.392) 16.8 bicubic 224
mobilenetv2_120d 77.294 (22.706 93.502 (6.498) 5.8 bicubic 224
mixnet_m 77.256 (22.744) 93.418 (6.582) 5.01 bicubic 224
resnet34d 77.116 (22.884) 93.382 (6.618) 21.8 bicubic 224
seresnext26_32x4d 77.104 (22.896) 93.316 (6.684) 16.8 bicubic 224
skresnet34 76.912 (23.088) 93.322 (6.678) 22.2 bicubic 224
ese_vovnet19b_dw 76.798 (23.202) 93.268 (6.732) 6.5 bicubic 224
resnet26d 76.68 (23.32) 93.166 (6.834) 16 bicubic 224
densenetblur121d 76.576 (23.424) 93.190 (6.810) 8.0 bicubic 224
mobilenetv2_140 76.524 (23.476) 92.990 (7.010) 6.1 bicubic 224
mixnet_s 75.988 (24.012) 92.794 (7.206) 4.13 bicubic 224
mobilenetv3_large_100 75.766 (24.234) 92.542 (7.458) 5.5 bicubic 224
mobilenetv3_rw 75.634 (24.366) 92.708 (7.292) 5.5 bicubic 224
mnasnet_a1 75.448 (24.552) 92.604 (7.396) 3.89 bicubic 224
resnet26 75.292 (24.708) 92.57 (7.43) 16 bicubic 224
fbnetc_100 75.124 (24.876) 92.386 (7.614) 5.6 bilinear 224
resnet34 75.110 (24.890) 92.284 (7.716) 22 bilinear 224
mobilenetv2_110d 75.052 (24.948) 92.180 (7.820) 4.5 bicubic 224
seresnet34 74.808 (25.192) 92.124 (7.876) 22 bilinear 224
mnasnet_b1 74.658 (25.342) 92.114 (7.886) 4.38 bicubic 224
spnasnet_100 74.084 (25.916) 91.818 (8.182) 4.42 bilinear 224
skresnet18 73.038 (26.962) 91.168 (8.832) 11.9 bicubic 224
mobilenetv2_100 72.978 (27.022) 91.016 (8.984) 3.5 bicubic 224
resnet18d 72.260 (27.740) 90.696 (9.304) 11.7 bicubic 224
seresnet18 71.742 (28.258) 90.334 (9.666) 11.8 bicubic 224
